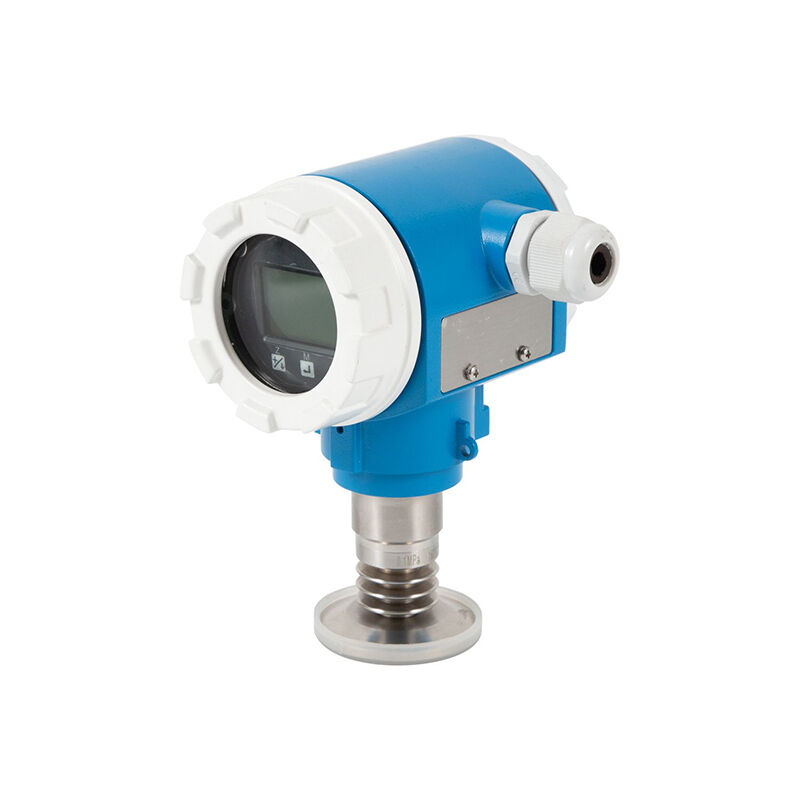

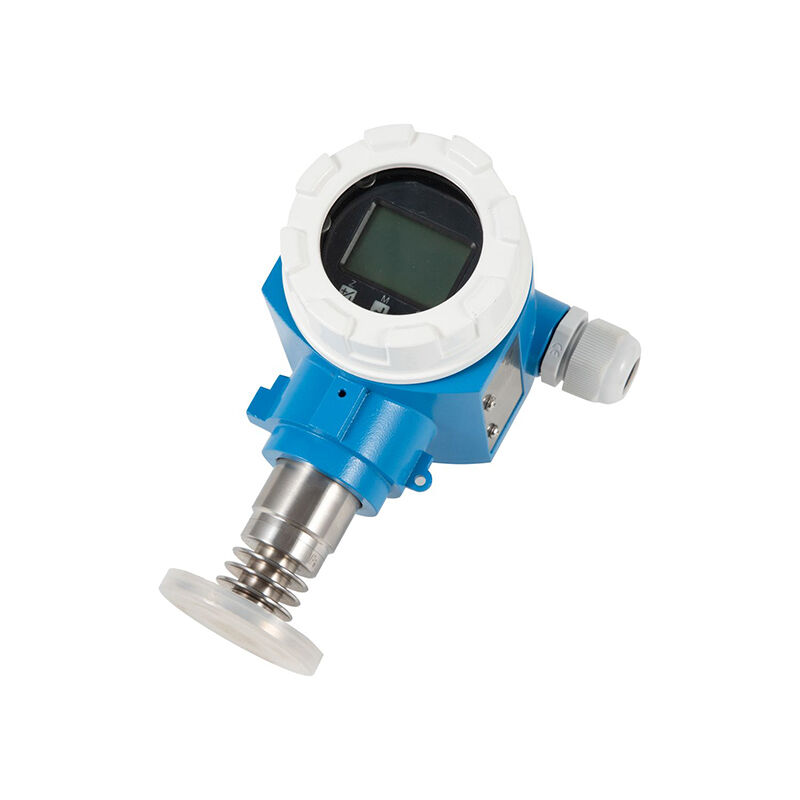

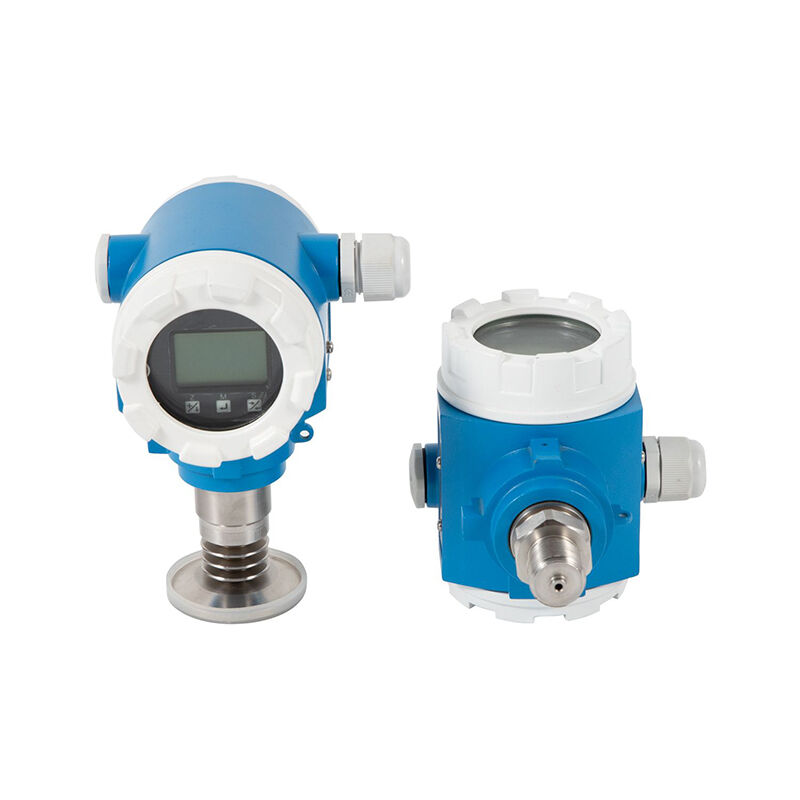

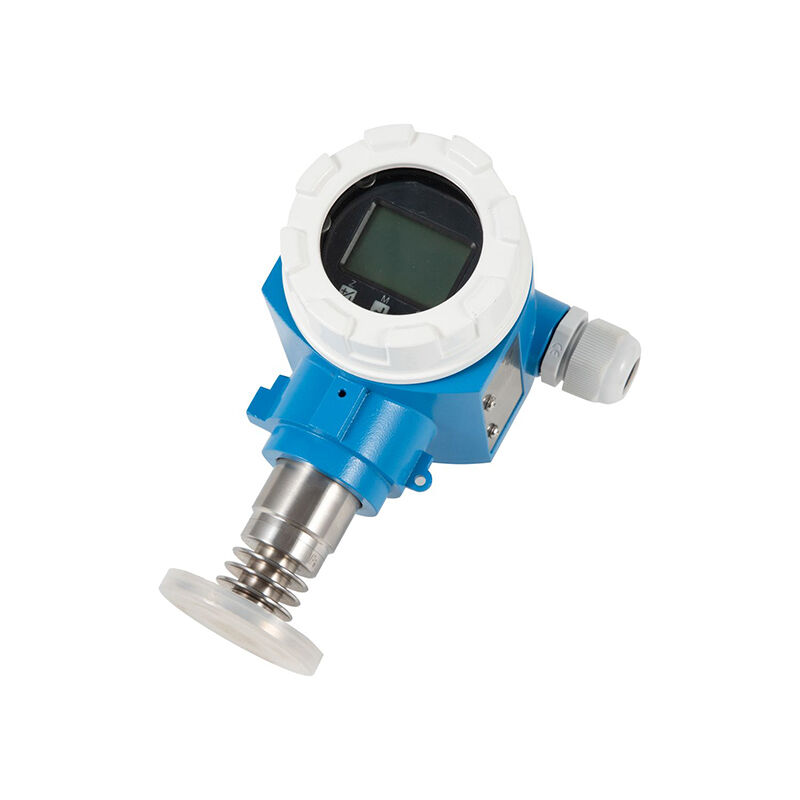

High Temperature Resistance of Stainless Steel Industrial Grade Sanitary Pressure Transmitter

WNK52 Smart Diaphragm Pressure Transmitter (Gauge & absolute pressure)

WNK5 series pressure transmitter is the high performance pressure transmitters provided by Anhui WNK Electronic Engineering Co., Ltd. It transforms the physical signal of pressure, differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.
Our WNK5 series has the best precision and signal uniformity by applying advanced specified integrated circuit digital technology. Each set of transmitter is ambient temperature compensated in our factory, to ensure max precision and mini drift in wide working temperature range.

Product Features
1. High reference accuracy up to 0.075%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and flameproof explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration

Product Application

High process temperatures up to 280℃ with diaphragm seals.

It can be used below particular occasiaon
1. Need to isolate the high temperature medium with transmitter
2. The measuring medium is corrosive to the transmitter
3. The measuring medium solidification or crystallization due to environmental or temperature changes
4. Suspended liquid or high viscosity medium

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.
