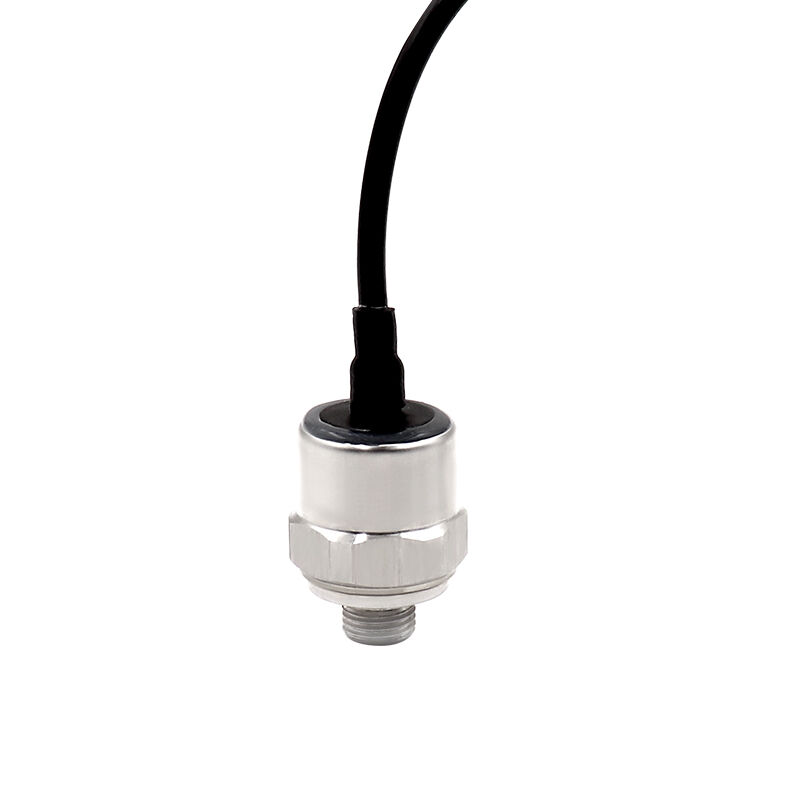

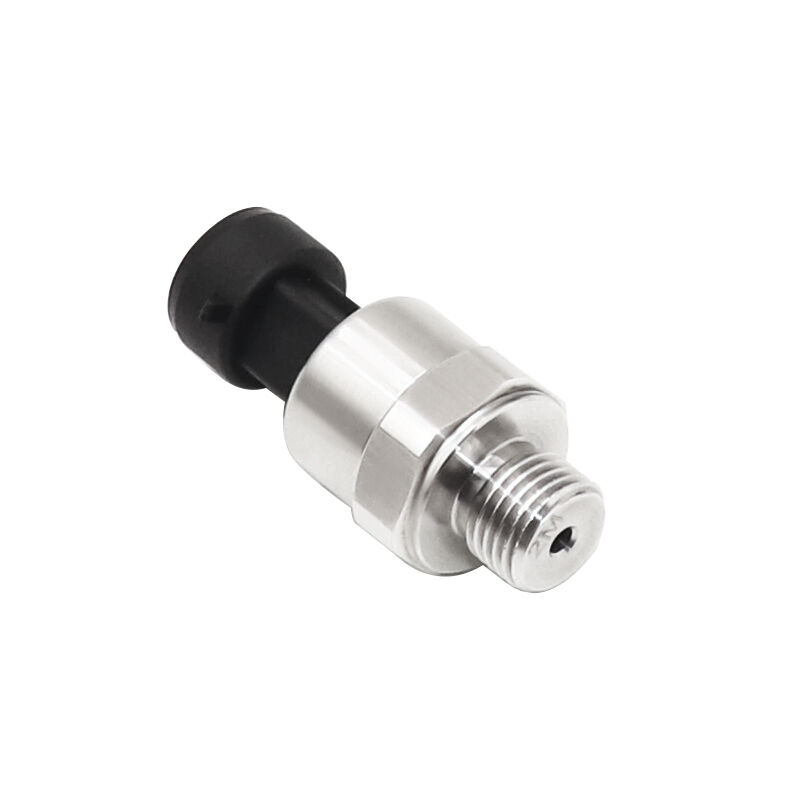

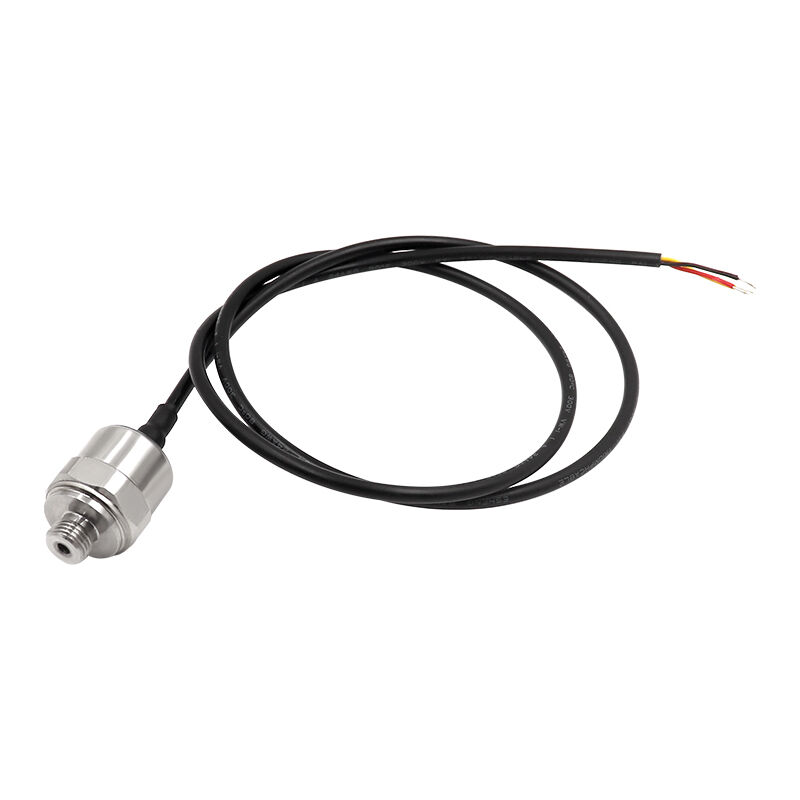

Name: Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125P
Availability: InStock

घर > उत्पादों > IOT दबाव सेंसर >

Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine

316 stainless steel pressure sensor

5V output coffee machine sensor

NPT1/4 food grade pressure transmitter

उत्पत्ति के प्लेस:

चियान

ब्रांड नाम:

WNK

मॉडल संख्या:

WNK125P

हमसे संपर्क करें

उद्धरण मांगें

उत्पाद का विवरण

भंडारण तापमान:

-50 ℃ ~ 135 सी

मध्यम:

इंजन तेल, पो तेल, सर्द, गैस, पानी या तरल

शुद्धता:

+1%एफएस (रैखिकता, हिस्टैरिसीस, दोहराव, अंशांकन)

विद्युत कनेक्टर:

पैकर्ड/ केबल आउटलेट

दबाव सीमा:

0 ~ 5bar, 0 ~ 10bar, 0 ~ 20bar, 0 ~ 40bar, (cutomized)

उत्पादन:

0.5V ~ 4.5V DC, (10%-90%VCC)

प्रक्रिया कनेक्शन:

G1/ 4, 7/16-Unffemale, (cusomized)

सामग्री:

आवास 304 एसएसटी; वेटेड पार्ट्स 316 एल

प्रमुखता देना:

316 stainless steel pressure sensor

5V output coffee machine sensor

NPT1/4 food grade pressure transmitter

भुगतान और शिपिंग की शर्तें

संबंधित उत्पाद

विडियो

WNK 0.5-4.5V G1/4 Coffee Machine Pressure Sensor Transmitter

सबसे अच्छी कीमत पाएं

विडियो

Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine

सबसे अच्छी कीमत पाएं

विडियो

यूनिवर्सल इंडस्ट्रियल 4-20mA पूर्ण निर्वात दबाव सेंसर ट्रांसमीटर के साथ WNK दबाव ट्रांसड्यूसर

सबसे अच्छी कीमत पाएं

विडियो

एचवीएसी और जल उपचार के लिए WNK 4-20ma पानी के दबाव ट्रांसमीटर सेंसर

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

WNK SS316L G1/4 Pressure Sensor for Boiler Coffee Machine

Product Description

Model	WNK125P
Power Supply	4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current	15mA MAX
Pressure range	0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output	0.5V~4.5V DC,(10%-90%VCC)
Process Connection	G1/4,7/16-UNFfemale,(cusomized)
Electrical connector	Pack
Working Temperature	-40℃C~130℃℃
Storage Temperature	-50℃~135C
Safe Pressure	1.5~2 time of the pressure range
Burst Pressyre	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium	Engine oil, POE oil, refrigerant, gas, water or liquid
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
Material	Housing 304 SST; wetted parts 316L

The WNK125P is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

Feature

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.
