Name: WNK 0.5-4.5V G1/4 Coffee Machine Pressure Sensor Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125P
Availability: InStock

घर > उत्पादों > IOT दबाव सेंसर >

WNK 0.5-4.5V G1/4 Coffee Machine Pressure Sensor Transmitter

G1/4 coffee machine pressure sensor

0.5-4.5V pressure transmitter

IOT coffee machine sensor

उत्पत्ति के प्लेस:

चियान

ब्रांड नाम:

WNK

मॉडल संख्या:

WNK125P

हमसे संपर्क करें

उद्धरण मांगें

उत्पाद का विवरण

भंडारण तापमान:

-50 ℃ ~ 135 सी

मध्यम:

इंजन तेल, पो तेल, सर्द, गैस, पानी या तरल

शुद्धता:

+1%एफएस (रैखिकता, हिस्टैरिसीस, दोहराव, अंशांकन)

विद्युत कनेक्टर:

पैकर्ड/ केबल आउटलेट

दबाव सीमा:

0 ~ 5bar, 0 ~ 10bar, 0 ~ 20bar, 0 ~ 40bar, (cutomized)

उत्पादन:

0.5V ~ 4.5V DC, (10%-90%VCC)

प्रक्रिया कनेक्शन:

G1/ 4, 7/16-Unffemale, (cusomized)

सामग्री:

आवास 304 एसएसटी; वेटेड पार्ट्स 316 एल

प्रमुखता देना:

G1/4 coffee machine pressure sensor

0.5-4.5V pressure transmitter

IOT coffee machine sensor

भुगतान और शिपिंग की शर्तें

संबंधित उत्पाद

विडियो

Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine

सबसे अच्छी कीमत पाएं

विडियो

WNK Pressure Transducer with Universal Industrial 4-20mA Absolute Vacuum Pressure Sensor Transmitter

सबसे अच्छी कीमत पाएं

विडियो

WNK 4-20ma Water Pressure Transmitter Sensor for HVAC and Water Treatment

सबसे अच्छी कीमत पाएं

विडियो

WNK 0-10बार 150Psi Npt 1/8 0.5-4.5V एयर गैस के लिए वाटर प्रेशर सेंसर ट्रांसड्यूसर

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

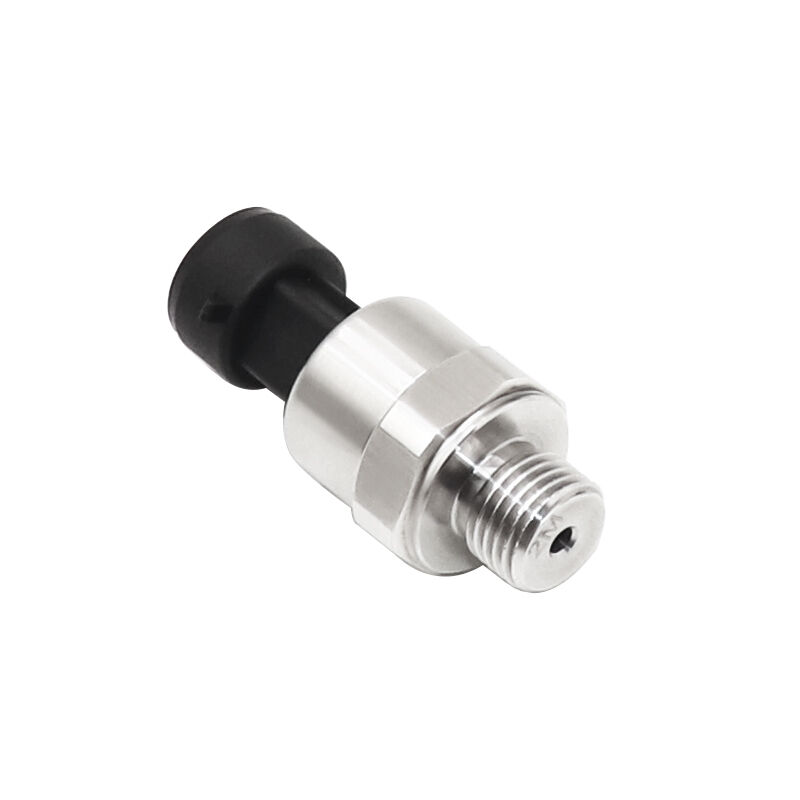

WNK Pressure Sensor for Coffee Machine

Product Description

The WNK125P is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

Feature

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.

Model	WNK125P
Power Supply	4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current	15mA MAX
Pressure range	0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output	0.5V~4.5V DC,(10%-90%VCC)
Process Connection	G1/4,7/16-UNFfemale,(cusomized)
Electrical connector	Pack
Working Temperature	-40℃C~130℃℃
Storage Temperature	-50℃~135C
Safe Pressure	1.5~2 time of the pressure range
Burst Pressyre	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium	Engine oil, POE oil, refrigerant, gas, water or liquid
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
Material	Housing 304 SST; wetted parts 316L
