WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor

WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor

capacitive water level transmitter

water tank level sensor

liquid level transmitter probe

उत्पत्ति के प्लेस:

अनहुई, चीन

ब्रांड नाम:

WNK

मॉडल संख्या:

WNK8010-टीटी

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद का विवरण
गारंटी:
1 वर्ष
अनुकूलित समर्थन:
ओईएम, ओडीएम
दबाव सीमा::
0...2~200 मीटर
उत्पादन:
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
शुद्धता:
0.2%एफएस, 0.5%एफएस,
बिजली की आपूर्ति:
12~36वीडीसी
संरक्षण वर्ग:
आईपी68
आवेदन:
वर्षा जल, पेयजल, अपशिष्ट जल, मलजल, समुद्री जल
आवास सामग्री:
304एसएस, 316एल
परिचालन तापमान::
-40~85 ℃
प्रकार:
गेज
ओईएम सेवा:
OEM, ODM, अनुकूलन उपलब्ध है
पत्तन:
शंघाई/निंगबो
प्रमुखता देना:

capacitive water level transmitter

,

water tank level sensor

,

liquid level transmitter probe

भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा
1 टुकड़ा
पैकेजिंग विवरण
प्रत्येक सेट एक व्यक्तिगत कार्टन में, फोम से सुरक्षा। फिर मास्टर कार्टन में
प्रसव के समय
5-8 कार्य दिवस
भुगतान शर्तें
टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता
2000 पीस/पीस प्रति माह लेवल प्रेशर सेंसर
उत्पाद का वर्णन





WNK Threaded Water level sensor for tank level measurement









WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.


Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price



Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.



Dimensions - IP68 Sumbersible Liquid Level Sensor

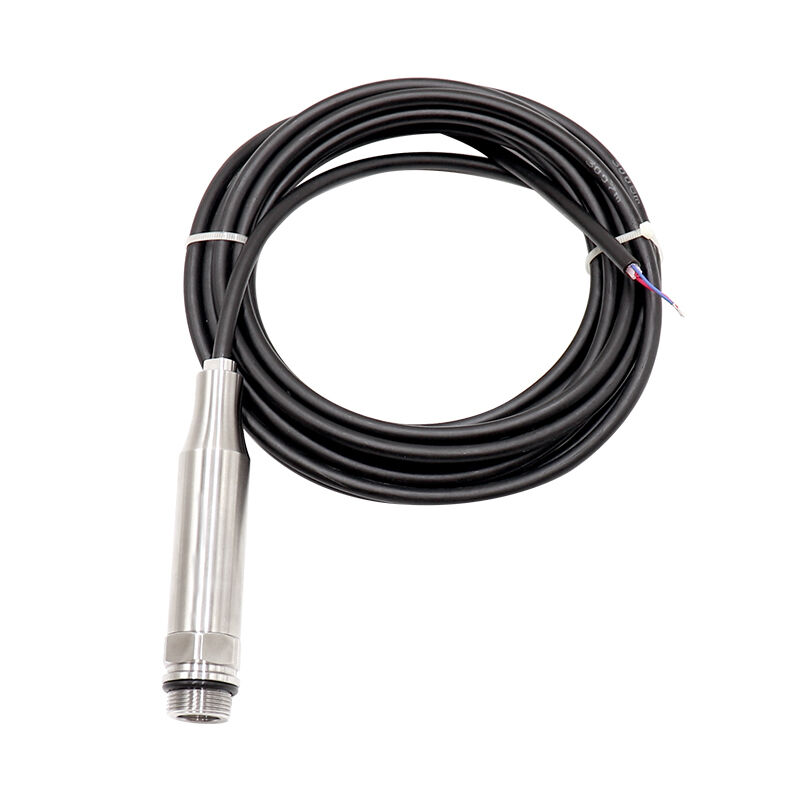

WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor 0

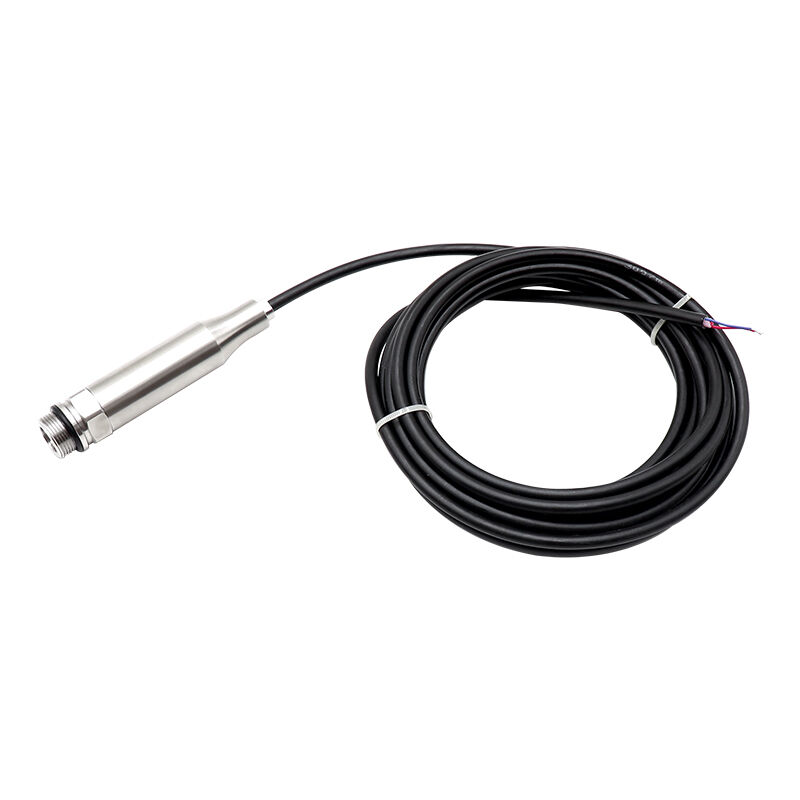

WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor 1

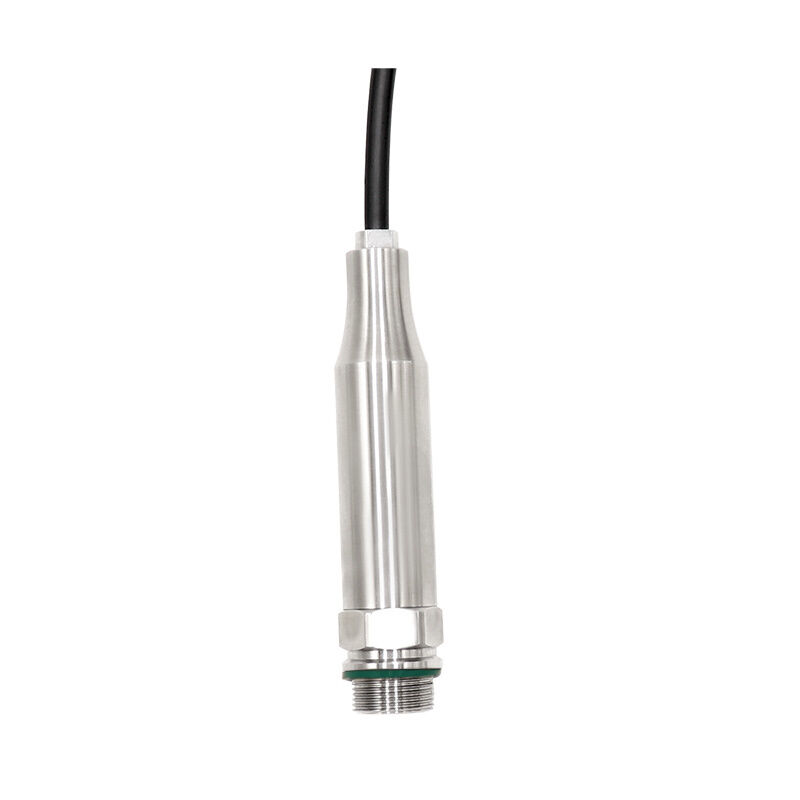

WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor 2
Product Show
WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor 3
